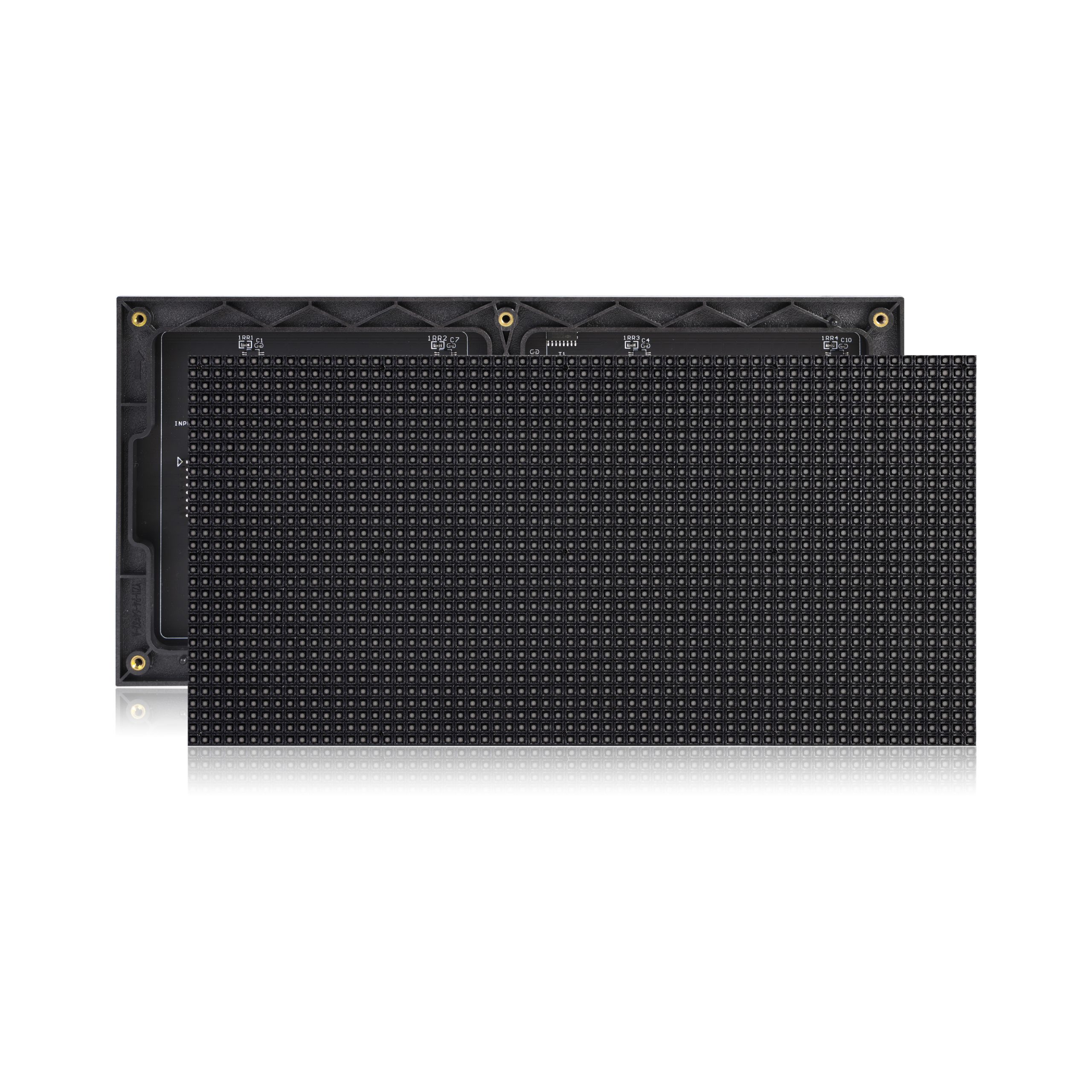

southbound outdoor high-end SMD total shade screen P5.9259 display module can be widely used in sports, advertising, live performance, school education, shopping mall publicity, transportation, tourist attractions and other high-end scenes; Enable business value maximization.

Features:

Original “cold screen” technology, the stability is reduced by 60% than the conventional, effectively control the temperature rise, and the screen body runs more stable; ‘
Low power consumption, true energy saving, power saving about 70%, efficient and energy-saving driver IC, reduce circuit drive loss, reduce operating costs;
8V/3.8V dual channel power supply, saving half of the power supply. Reduce failure rate;
Cold light source high brightness, better meet the high reliability requirements of outdoor applications;
Low heat, natural heat dissipation without air conditioning, zero noise work more energy saving, extend the life of the display;
Ultra-high refresh display, fast frame change speed, no shadow tailing, low light and high gray lossless technology;
The CNC finished magnesium aluminum box is 22KG/m² lighter than the traditional iron box and 8KG/m² lighter than the die-cast aluminum box.
Fully sealed MG-aluminum box design, waterproof, dustproof, anti-corrosion, flame retardant, anti-UV, protection level up to IP65;

◆ Description

Leds can be used in the same way as other electronic products. However, when using Southbound LED products, please follow the following precautions to protect the product.

1. If cleaning module surface, please use a soft brush, gently brush. Do not use any liquid substance to clean the surface of the LED module, otherwise it may damage the SMD-LED.

Moisture-proof and storage requirements
After opening the package, SMD-LED products must be stored in a temperature <30 ° C and humidity <60% environment.
If the screen body is not used for more than 3 days, each time the screen body needs to be preheated: 30%-50% of the brightness is preheated for 4-8 hours, and then adjusted to normal brightness (80%-100%) to light the screen body, so that moisture is removed, so that there is no anomaly in use.
If the screen body is not used for more than 7 days, each time the screen body needs to be preheated: 30%-50% of the brightness is preheated for more than 12 hours, and then adjusted to normal brightness (80%-100%) to light the screen body, so that moisture is removed, so that there is no anomaly in use.
