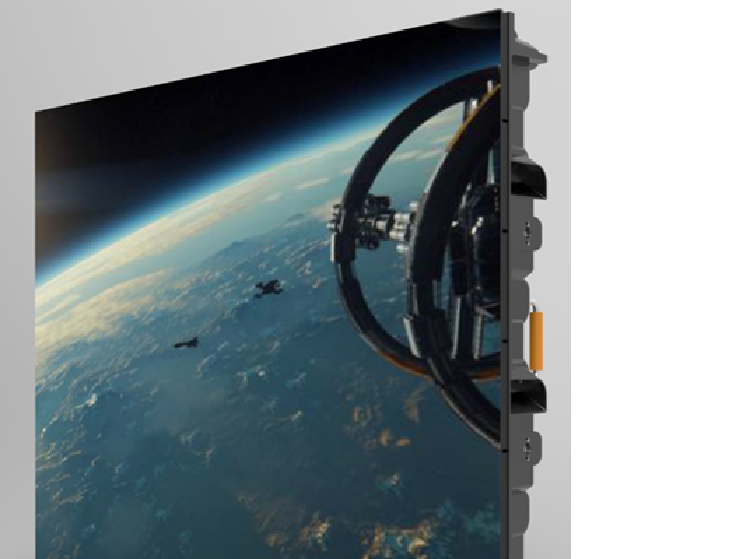

southbound outdoor high-end SO-P10 LED display module can be widely used in sports, advertising, live performance, school education, shopping mall publicity, transportation, tourist attractions and other high-end scenes; Enable business value maximization.
1. The display is mainly composed of red LED chips, green LED chips and blue LED chips packaged into a matrix of pixels, and then fixed to the plastic kit;
2. The display contains a driver chip and input buffer chip, which can be connected to the LED display control system to display video, images and text information;
3. Through the system control of the driver chip driving red LED, green LED and blue LED, 4,398 billion color changes can be formed;
4. Modules and boxes can be spliced horizontally and vertically to form display screens of different sizes;
5. Product features:
High quality lamp, high efficiency lamp brightness utilization rate, while ensuring the service life of the lamp and high-quality plastic parts
High contrast can achieve good display effect
The weight is easy to install and remove
Single point, single lamp maintenance, low cost
The driver chip uses SSOP package constant current driver chip.
Screen body technical parameters
Brightness ≥4500cd/㎡ Brightness uniformity > 0.95
The horizontal viewing Angle of the screen 140±10 degrees The vertical viewing Angle of the screen 130±10 degrees
Best visual range ≥10m for outdoor use
Maximum power per square module ≤857W/㎡
Distribution power (maximum power per square ÷78%÷85%) ≤1293W/m2
Gray level Red, green, blue 12-14bits each display color 4,398 billion
Frame change frequency ≥60 frames/second refresh frequency 3840Hz
Control mode Computer control, point-by-point one-to-one correspondence, video synchronization, real-time display brightness adjustment 256 manual/automatic
Input signal DVI/VGA/HDMI/DP, composite video signal, S-VIDEO, YpbPr(HDTV)
Service life ≥ 100,000 hours Average trouble-free time ≥ 10,000 hours
Attenuation rate (working for 3 years) 1 year ≤10%, 2 years ≤12%, 3 years ≤ 15% Continuous runaway point 0
Failure rate/dead lamp rate 1 year ≤0.5‰, 2 years ≤1.1‰, 3 years ≤2.3‰
Discrete runaway point < 0.0001, factory zero Blind spot rate < 0.0003, factory zero
Operating temperature range -20-40℃ Operating humidity range 10%-90%RH
Protection Performance Over temperature/overload/power failure/image compensation/various correction techniques/Over current/Over voltage/lightning protection (optional)
Screen horizontal flatness < 1mm/㎡
Vertical flatness of screen < 1mm/㎡
Box technical parameters
Box specifications (Length * width * thickness) 960mm*960mm*104.5mm (thickness including module and box)
960mm*960mm*169.5mm (thickness including module, box, connecting piece)
Box resolution 96*96=9216Dots
The box area is 0.9216 square meters
Box weight 30kg± 0.5kg
Maximum power consumption (module power x number of modules in a box) ≤790W
Average power consumption (1/3 of maximum power) ≤263W
Distribution power (power utilization rate 78%, i.e. maximum power ÷78%) ≤1013W

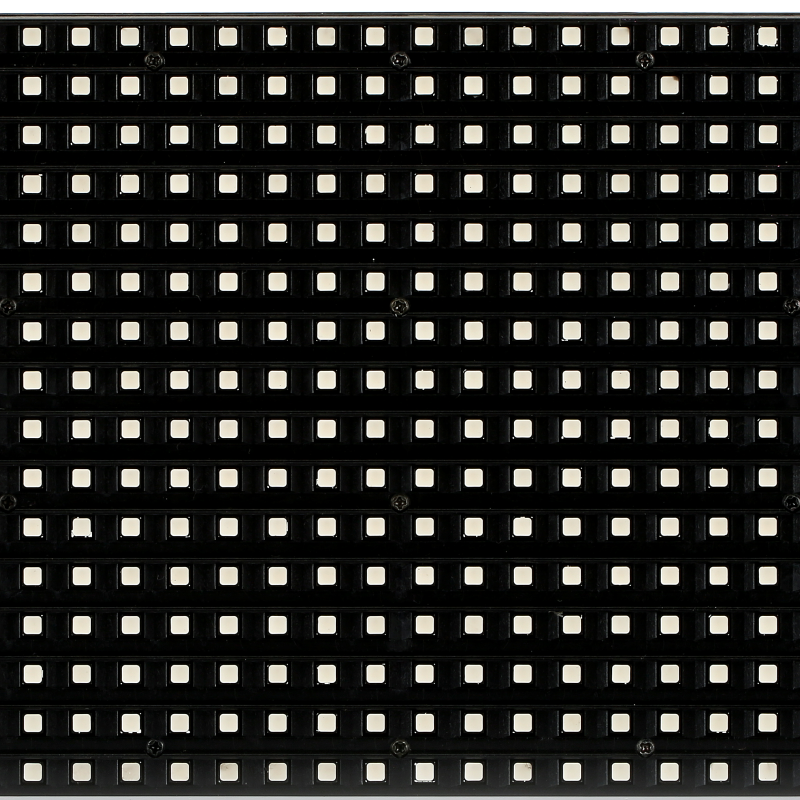

Module technical parameters
Image decimal spacing 10mm pixel density
The pixel constitutes a 1R1G1B tube package
Dimensions (Length * width * thickness) 320*160*19mm weight
Structure features Lamp drive integrated module resolution
Input voltage (DC) 4.5±0.1V Maximum current
Module power ≤44W Drive mode
Number of 40A power modules 2-3 Number of 50A power modules
The number of 40A PFC power modules is 3-4 80A power modules
